RDK: IIC Communication

Introduction

This repository provides Python example code for communication between the RDK X5 (Raspberry Pi) platform and the AI voice interaction module, supporting two communication methods: I2C and UART.

• Speech recognition module: supports offline speech recognition and outputs the command ID after recognition

• Playback functions: supports passive playback, function word playback and command word playback

• Communication protocol: I2C address 0x2A, UART baud rate 115200

• Programming language: Python 3

---

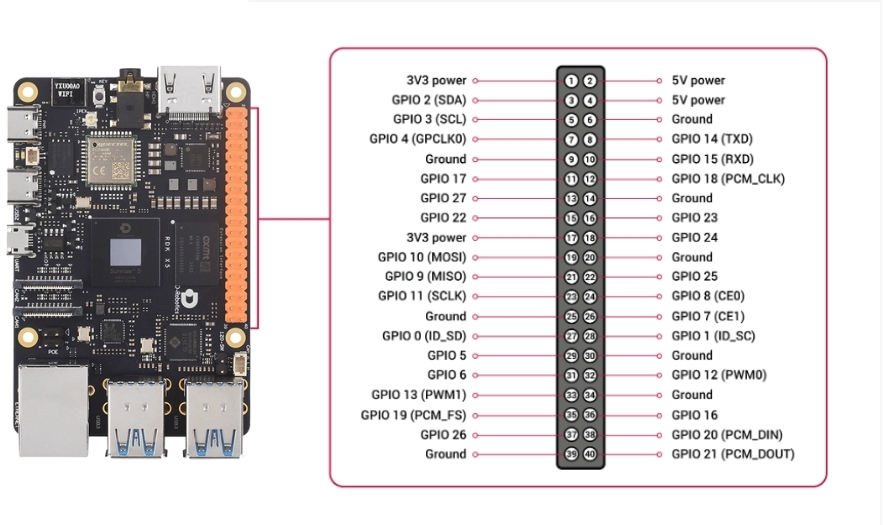

Hardware Connection

General Connection

Important: make sure all devices share a common ground!

---

I2C Version Connection

Note: I2C bus 5 (BCM numbering) is used by default

---

Environment Setup

System Requirements

• RDK X5

• Ubuntu / Debian system

• Python 3.7+

Install Dependency Packages

# Update packages
sudo apt update
sudo apt upgrade -y

# Install Python libraries
sudo apt install -y python3-pip python3-smbus i2c-tools

Enable the I2C Interface

# Open the configuration tool
sudo raspi-config

# Select Interface Options → I2C → Enable
# Reboot to take effect
sudo reboot

Test the Hardware Interfaces

# Test the I2C device
sudo i2cdetect -y 5

---

Using the IIC Version

Check the Code Files

cd IIC_Voice
ls -la
# You should see iic_voice.py

Configure the I2C Bus

Edit the iic_voice.py file and modify the required parameters:

# I2C device address
DEVICE_ADDRESS = 0x2A

# Register address
REG_RESULT = 0xDA

# I2C bus number (modify according to the actual connection)
bus = smbus.SMBus(5)  # I2C bus 5

Run the Program

# Grant execute permission
chmod +x iic_voice.py

# Run (sudo privileges required to access I2C)
sudo python3 iic_voice.py

Running Test

After a normal startup it will display:

Speech Serial Opened! Baudrate=115200

Say a command word to the voice module and the corresponding ID will be displayed:

Speech Serial Opened! Baudrate=115200
ID:1
ID:4
ID:10

Stop the Program

Press Ctrl + C to stop the program:

Program terminated

---

Troubleshooting

Q1: Insufficient permission for I2C operations

A: Add the user to the I2C user group:

sudo usermod -aG i2c $USER
# Takes effect after logging in again

Or run the program with sudo

---

Q2: The I2C device cannot be scanned

A: Check:

1. Confirm that I2C is enabled (raspi-config)

2. Check whether SDA/SCL are reversed

3. Check whether the grounds are common

4. Check whether the device is powered

# Scan I2C devices
sudo i2cdetect -y 5
# If you see 0x2A, the device is connected properly

---

Q3: The command ID only shows 0 or does not appear

A: Normal behavior:

• 0 = no valid command recognized

• the ID is output only when a valid command word is spoken

• wake the module first, then say the command

---

Q4: Recognition accuracy is not high

A: Optimization suggestions:

• Keep the environment quiet and the background noise low

• Keep a moderate distance from the microphone (10-50cm)

• Speak at a moderate rate and articulate clearly

---

Technical Support

If there are problems, please check:

1. Whether the hardware wiring is correct (a common ground is very important!)

2. Whether the serial port baud rate is 115200

3. Whether the I2C address is correct (0x2A)

4. Whether there is sufficient permission to access the hardware interface

Common Debugging Commands

ls -l /dev/i2c*      # View I2C devices
groups                # Check user group permissions
