PC Communication

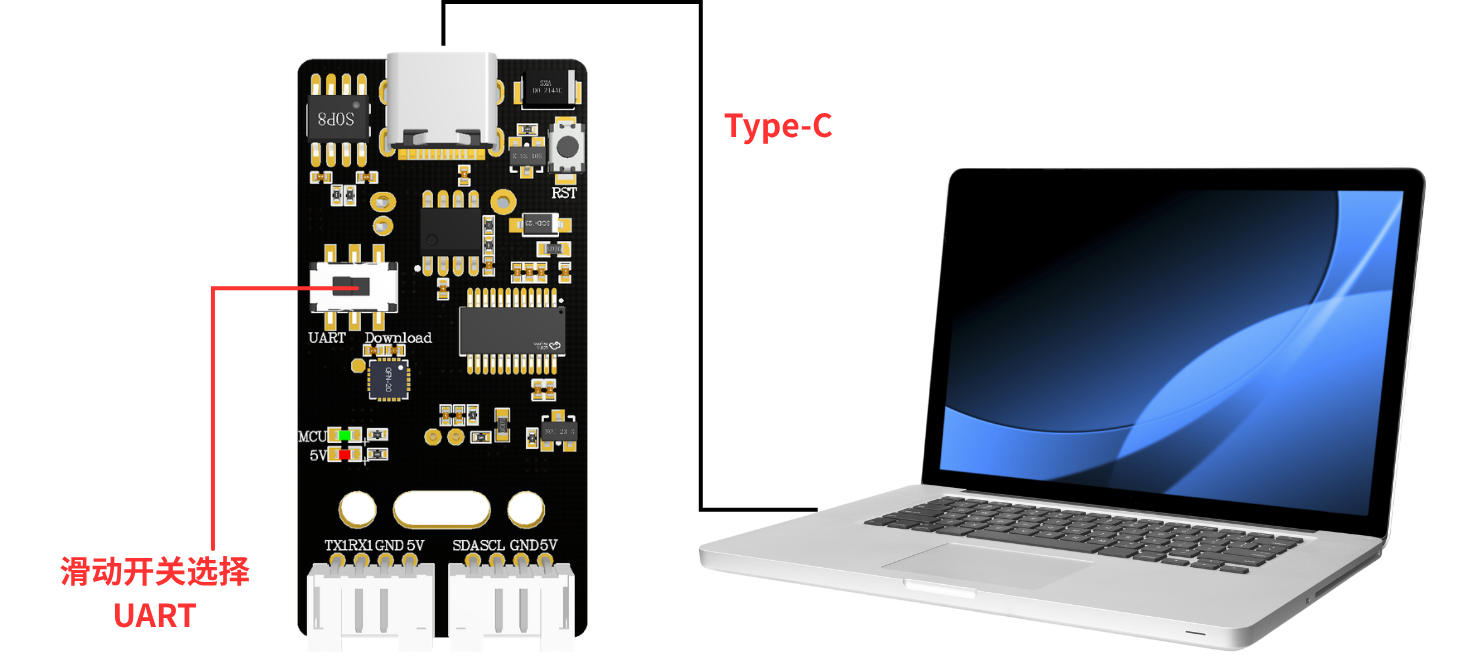

Device Connection
Move the slide switch to STC8 serial port mode
Open the Serial Debug Assistant

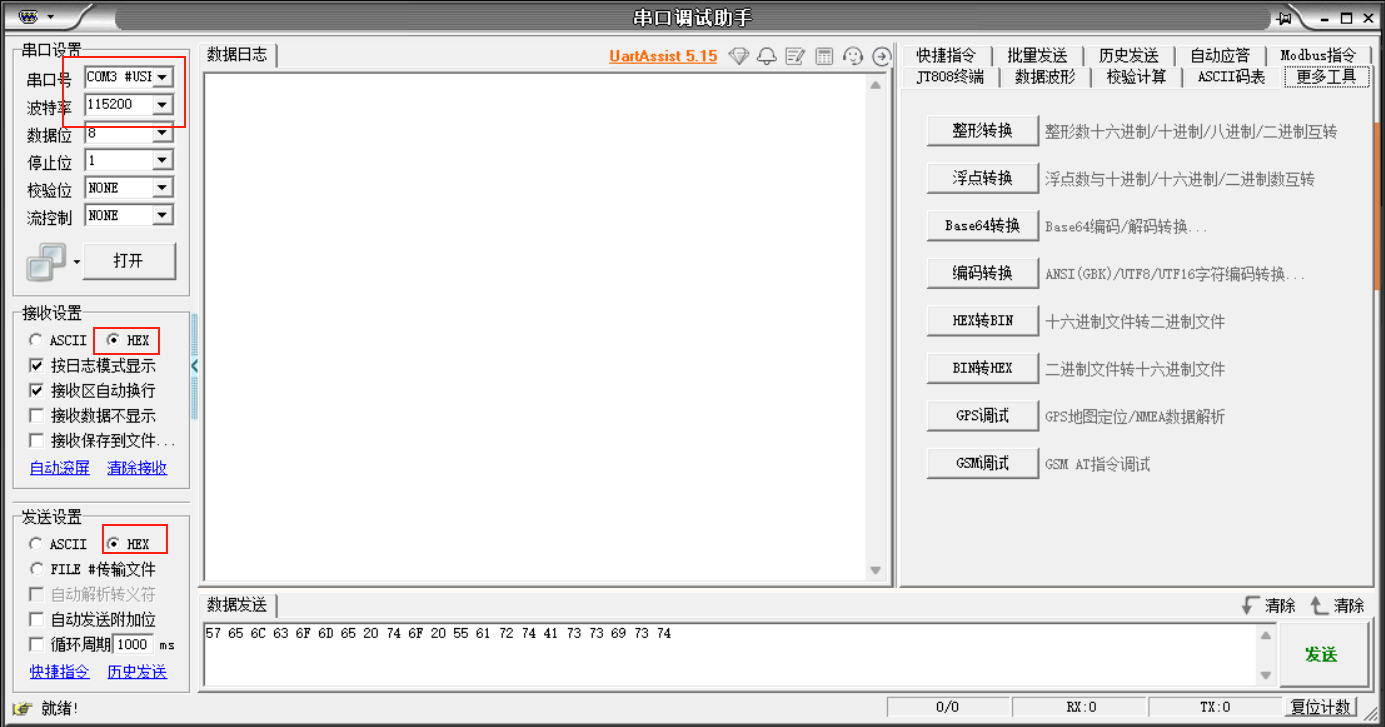

- Open Uart Assistant, select the corresponding serial port number, and set the baud rate to 115200,

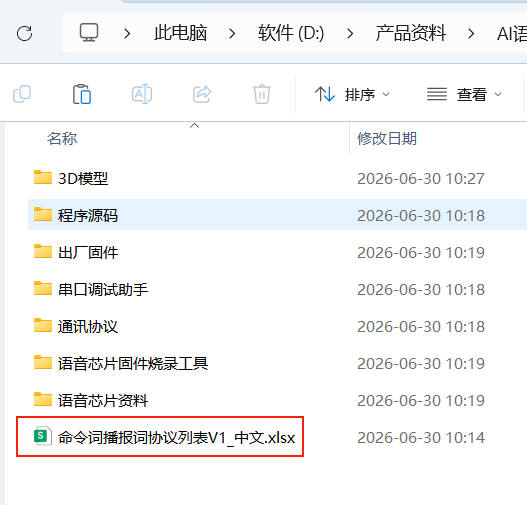

- Refer to the command word / playback word protocol list V1_中文 file in the archive

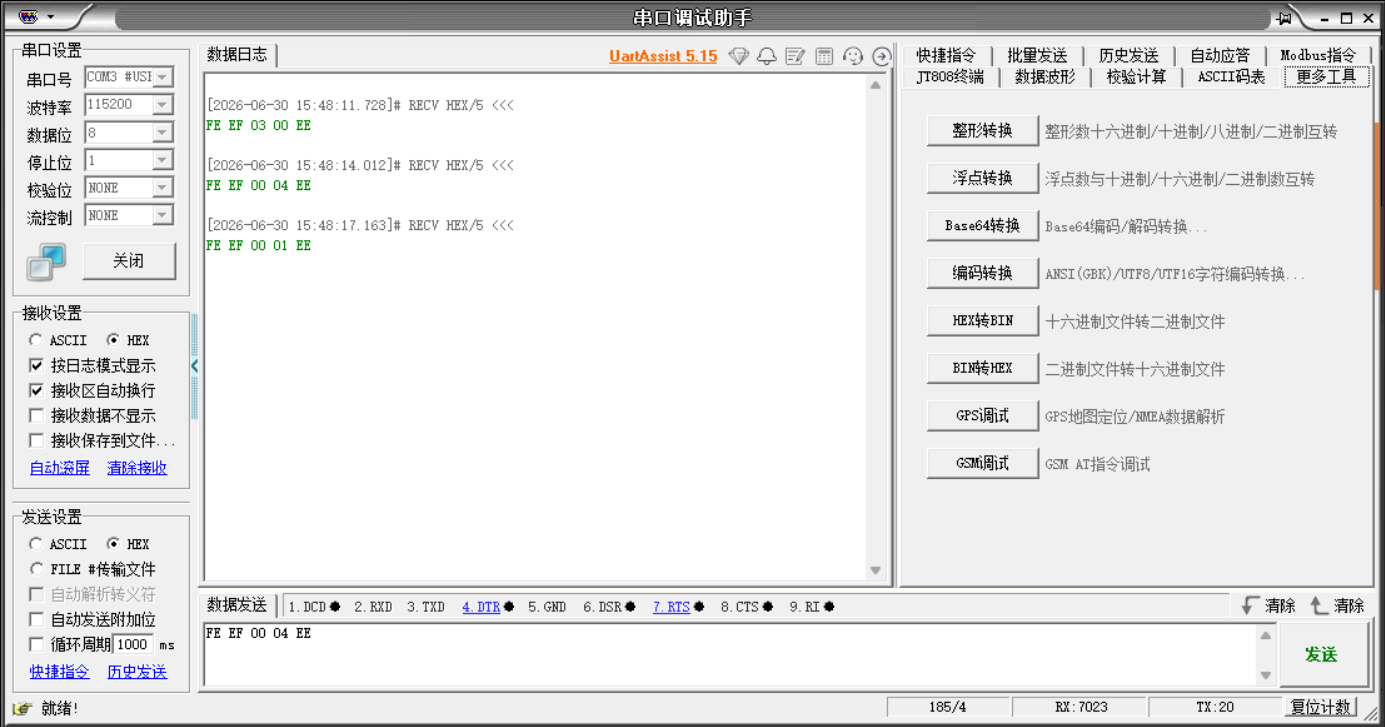

- When we say “小车前进”, the serial debug assistant prints the corresponding protocol

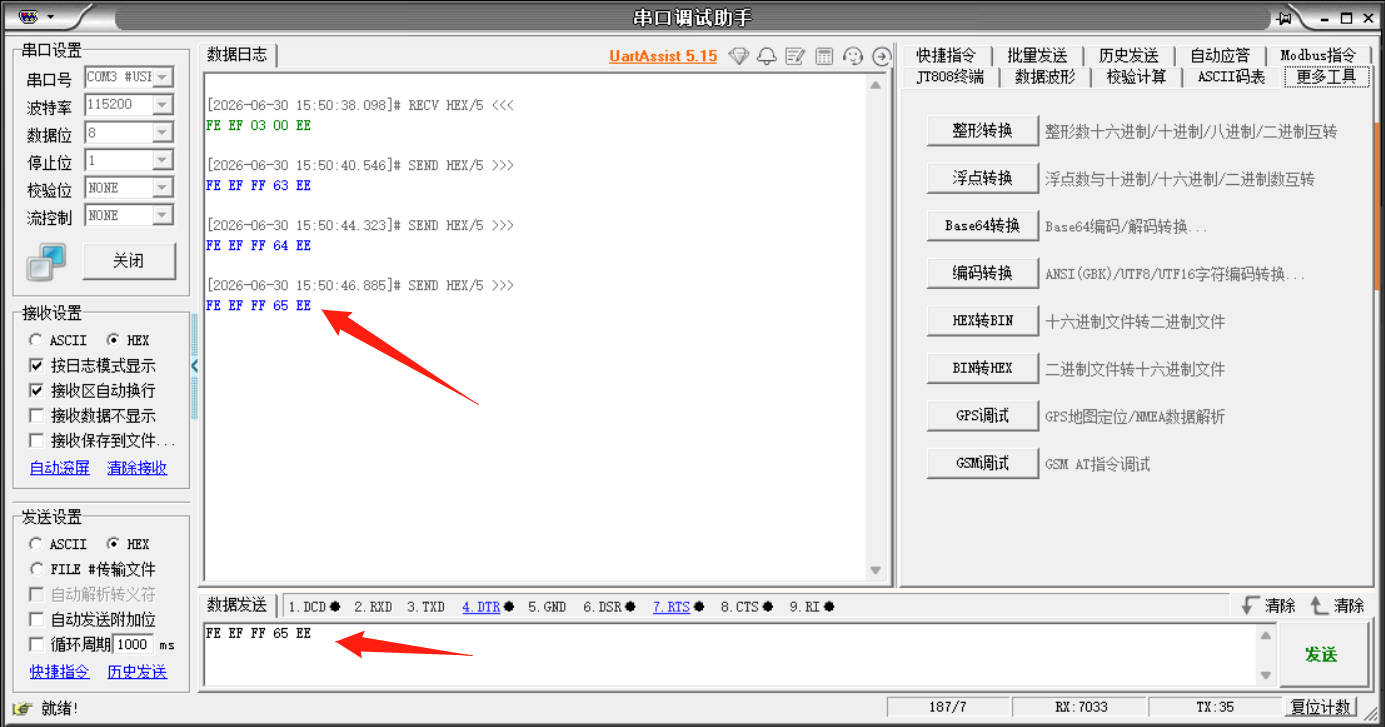

- Enter the corresponding command according to the command word / playback word protocol list V1_中文 file, and the voice module plays back the text corresponding to the protocol
You can hear the voice module playing back normally.
