Module Info
The GPS module is a high-performance BDS/GNSS positioning and navigation module based on the ATGM336H-5N. The module supports multiple satellite navigation systems, including all satellites of China's BeiDou-2 and BeiDou-3, the United States' GPS, Russia's GLONASS, and Japan's QZSS. It can simultaneously receive satellite signals from the above satellite navigation systems and achieve combined positioning, navigation, and timing. The module has advantages such as high sensitivity, low power consumption, and low cost, and is suitable for vehicle navigation, handheld positioning, and wearable devices.
1. Module Features:
Supports all BeiDou-2 and BeiDou-3 satellites numbered 1~63
Supports single-system positioning of the BDS/GPS/QZSS satellite navigation systems, as well as multi-system combined positioning in any combination.
Supports A-GNSS
Cold start acquisition sensitivity: -148dBm
Tracking sensitivity: -162dBm
Positioning accuracy: 2.5 m (CEP50)
Time to first fix: 32 s
Low power consumption: continuous operation 25mA@3.3V
Built-in antenna detection and antenna short-circuit protection

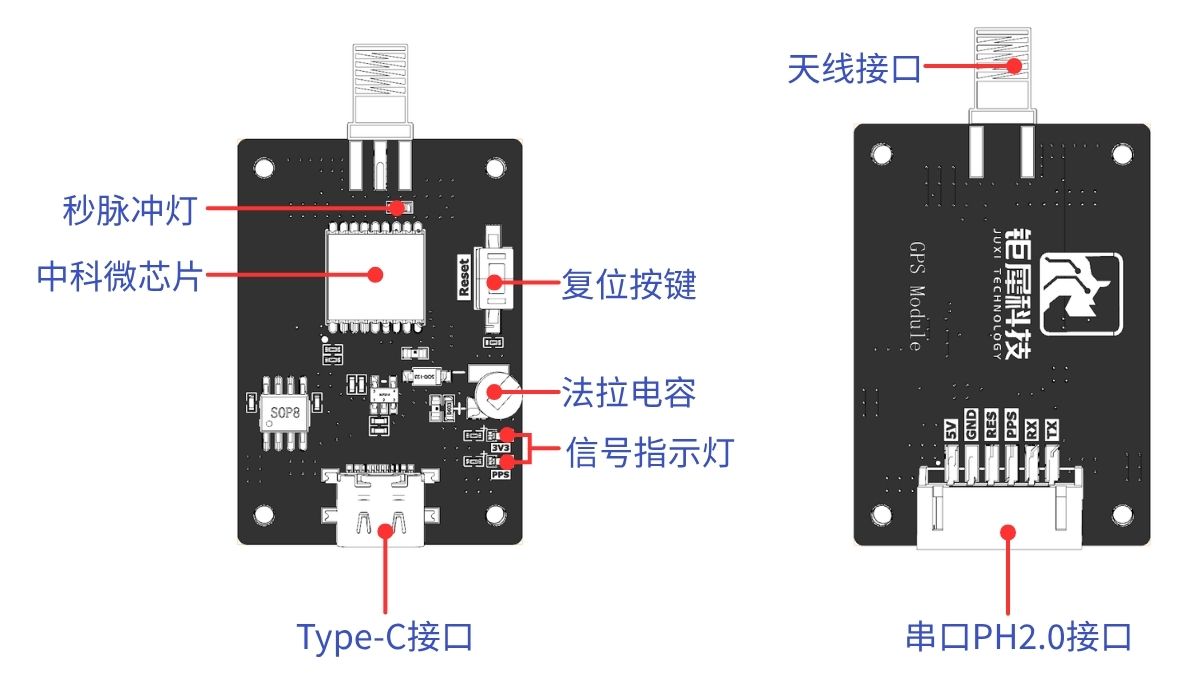

2. GPS Module Interface Description:
3. Communication Protocol
For the detailed communication protocol, refer to CASIC多模卫星导航接收机协议规范.pdf .
